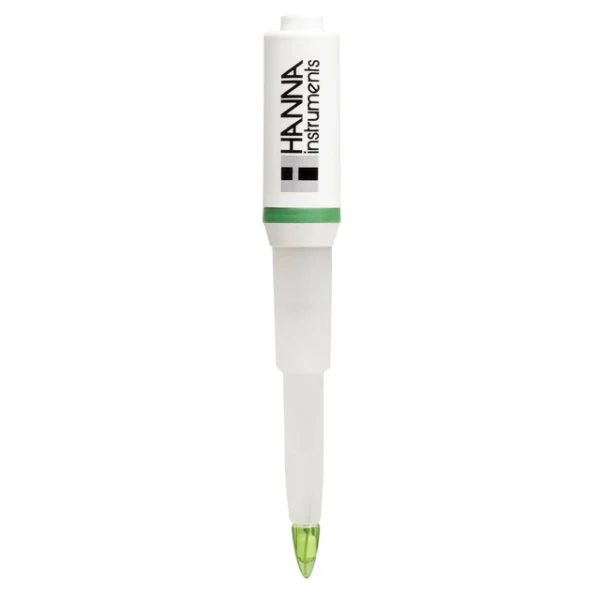

FC2023 PVDF Foodcare pH Electrode for Dairy Products and Semi-Solid Foods
The FC2023 is an amplified double junction pH electrode that has a built-in temperature sensor and connects to the meter with a quick connect DIN connector. This type of connector is proprietary to specific meters such as the HI98190.Ā The FC2023 electrode features a food grade plastic PVDF body, an open junction design with viscolene gel electrolyte, a sensing bulb made of low temperature glass, and a conical tip shape. This design consideration is ideal for pH measurements in dairy products, emulsions, cream, or other semi-solid samples. The recommended operating temperature range is from 0 to 50Ā°C.
- Low Temperature Glass
- PVDF Body
- Open Junction
| Specification | Detail |
|---|---|
| SKU | FC2023 |
| Description | pH electrode |
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | open |
| Electrolyte | viscolene |
| Max Pressure | 0.1 bar |
| Range | pH: 0 to 12 |
| Recommended Operating Temperature | 0 to 50Ā°C (32 to 122Ā°F) – LT |
| Tip / Shape | conic (6 x 10 mm) |
| Temperature Sensor | yes |
| Amplifier | yes |
| Body Material | PVDF |
| Cable | 7-pole 1 m (3.3′) |
| Recommended Use | yogurt, cheese, meat, semi-solid foods, fruits, ham and sausages |
| Connection | Quick Connect DIN ** |
| Special Note | * Recommended for use with HI98161 and HI99161 pH meters |
